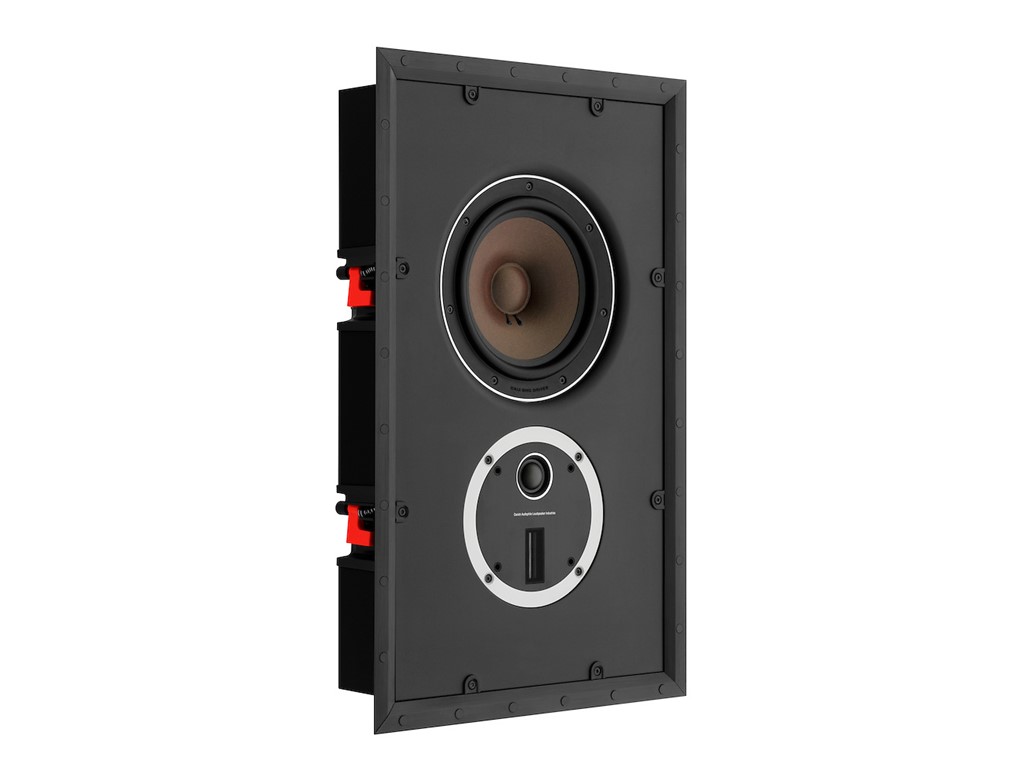

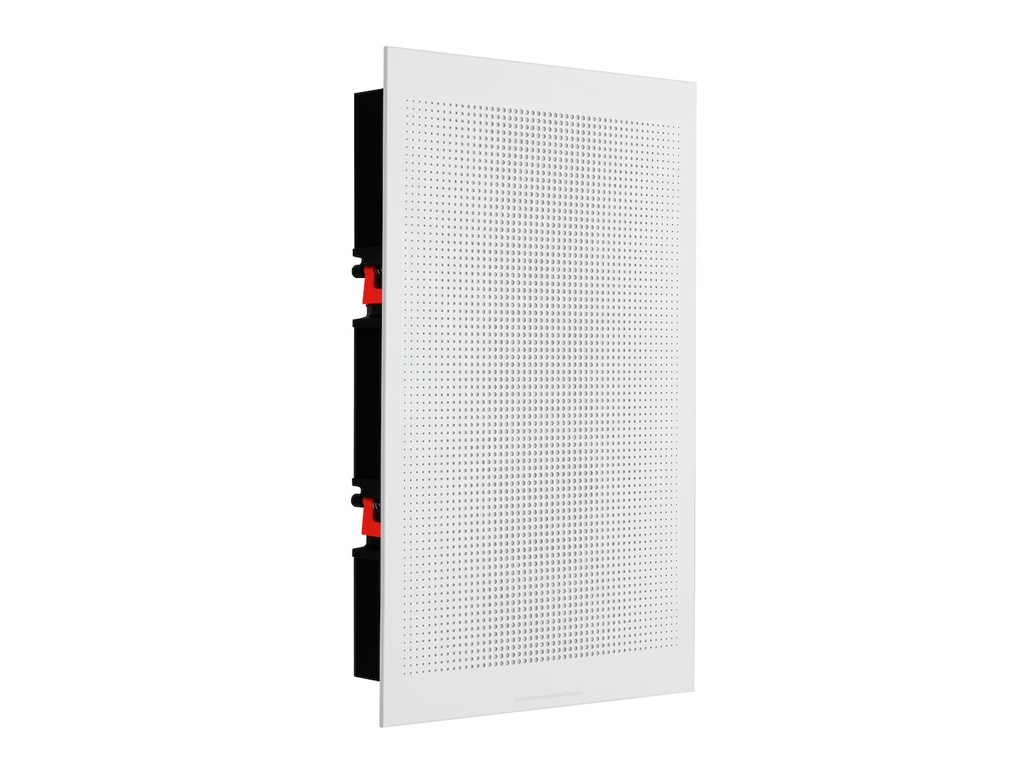

PHANTOM S-80 The DALI PHANTOM S-80 in-wall speaker delivers a clear and well-defined audio performance. With its combined 8" bass/midrange woofer and rotatable hybrid tweeter module, the PHANTOM S-80 is a flexible speaker with impressive bass response. DALI PHANTOM broshure DALI PHANTOM WHITEPAPER DALI PHANTOM Ton · 5.1-In-Wall-Lautsprecher Wide Dispersion Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers. Slim Cabinet With a depth of 100-103 mm, our slim-profile DALI PHANTOM speakers fit conveniently into most standard walls. Magnetic Grille DALI PHANTOM S and M series magnetic front grilles have a simple, modern Nordic design that's both non-intrusive and attractive. Patented SMC Our patented Soft Magnetic Compound (SMC) minimises colouration and distortion, compared with conventional drive design. NO-COMPROMISE AUDIO Innovative technologies for full frequency response The slim DALI PHANTOM S-80 in-wall loudspeaker offers a full frequency response similar to that of a floorstanding loudspeaker without sacrificing valuable living room space. Delivering no-compromise in-wall audio performance using proven speaker technologies, the S-80 includes our signature wood fibre cone, low-loss rubber surround, solid MDF front baffle, patented hybrid tweeter module and our innovative SMC magnet design. LOW-PROFILE CABINET Extremely compact for a serious in-wall speaker The compact design of the PHANTOM S-80 fits into most standard walls. At only 103 mm deep, it's slim yet has the perfect inner volume for the woofer to perform at its best. The solid MDF cabinet provides a robust platform for the drivers, while the dogleg mounting system makes installation simple. When installed, the elegant, extruded aluminium frame and magnet mounted front grille let the PHANTOM S-80 integrate elegantly into any room. PATENTED SMC Reducing distortion with Soft Magnetic Compound Developed originally for the EPICON series, the PHANTOM S-80 woofer features our patented SMC magnet system. SMC has the unique ability to deliver very high magnetic conductivity and very low electrical conductivity, which dramatically lowers distortion while delivering all the benefits of a traditional magnet system. DRIVERS Designed and optimised for bass and midrange performance The specially developed 8" woofer is optimised for both bass and midrange performance. With 70% more surface area than a traditional 6½" woofer, it moves more air and produces higher sound pressure at very low frequencies. All this, while delivering the detail, rich midrange and full frequency response of a traditional floorstanding speaker. The PHANTOM S-80 also features our trademark hybrid tweeter technology. Combining a 28 mm soft dome tweeter with a high-performance ribbon tweeter, high frequencies are rendered with amazing detail and a wide dispersion pattern that outperforms all other tweeter technologies. The hybrid tweeter module can also be rotated when installed as a centre speaker in a multichannel setup. INSTALLATION Optimising the hybrid tweeter module for maximum performance When installing the PHANTOM S-80 into a wall, the ribbon tweeter should be placed at ear height. By placing the hybrid tweeter module at the bottom of the speaker, the S-80 can be installed higher up in line with larger wall-mounted TVs. The dome tweeter has also been rotated for a more seamless handover between the tweeter module and woofer, resulting in better integration with the room and improved bass performance. WIDE DISPERSION Easy integration in any room All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM S series speakers, which are mounted flush with the surface of a wall. SPECIFICATIONS Frequency Range [+/- 3] dB [Hz] 59 - 25,000 Sensitivity [2.83V/1m] [dB] 88 Nominal Impedance [ohms] 6 Maximum SPL [dB] 108 Recommended Amp. Power [Watts] 40 - 200 Crossover Frequencies [Hz] 2,800 / 15,000 Crossover Principle N/A High Frequency Driver 1 x 28 mm soft dome, 1 x 17 x 45 mm ribbon Low Frequency/Midrange Driver(s) 1 x 8"
